Pulsation Dempeners
1.Balance the peak value of high pressure fluid pressure of mud pump to stabilize pressure and reduce loss.

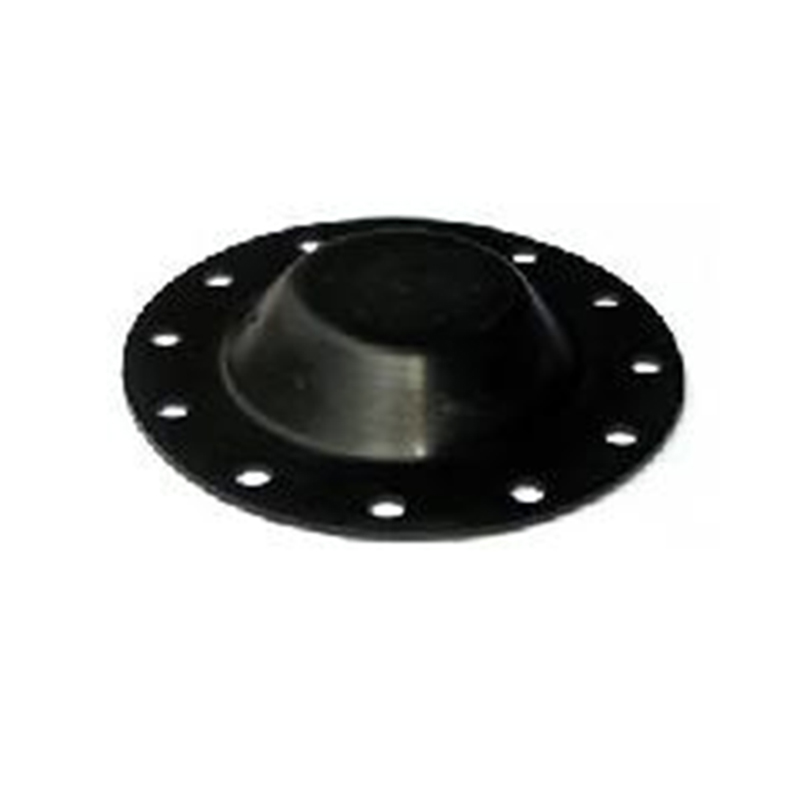

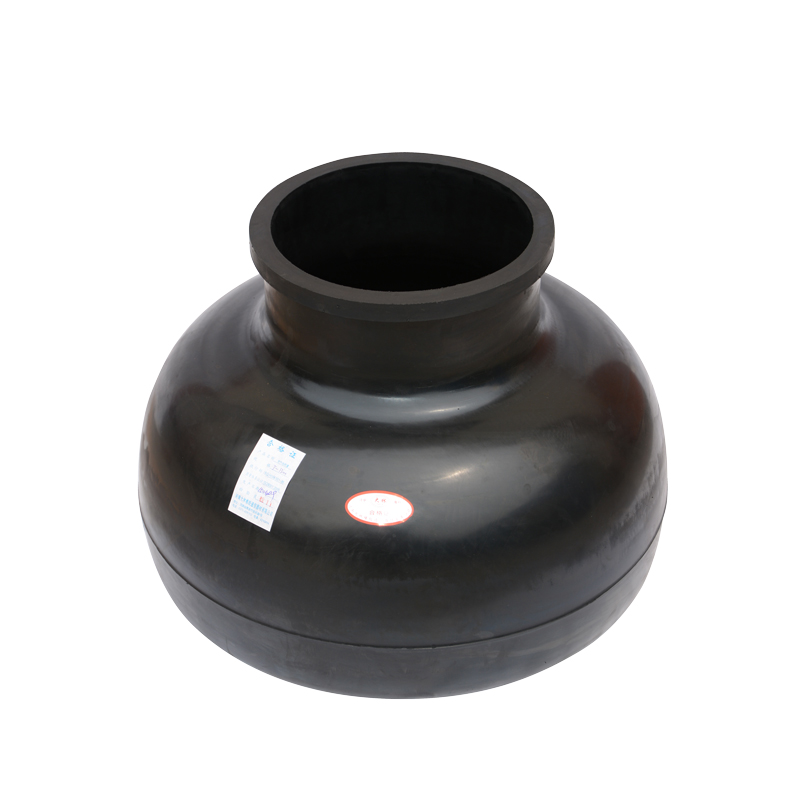

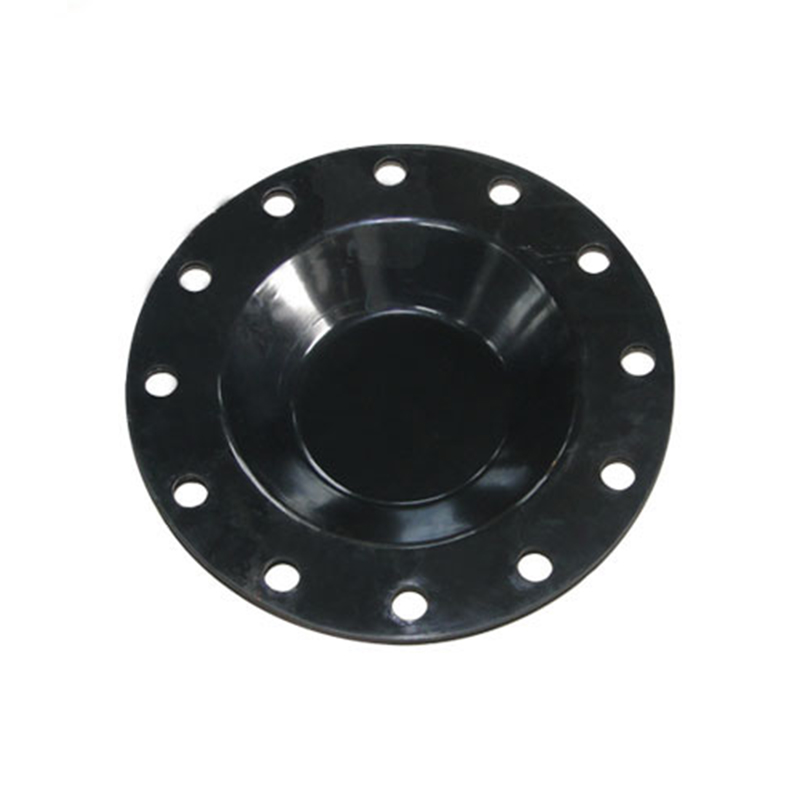

The utility model is composed of an inflating joint, an air case shell, a full rubber integral capsule, a throttling plate, etc.
2.The curve length of the inner surface of the air case shell is equal to the curve length of the outer surface of the full rubber integral capsule.
3.It stabilizes the discharge flow of the drilling pump by virtue of the compression and expansion functions of the gas in the air bag capsule. When the output flow of the pump is higher than the average flow, the gas in the air case isCompress to make excess liquid enter the air chamber; On the contrary, the liquid in the air case is discharged into the pipeline, which reciprocates with the working speed of the pump, making the pump flow more stable.
4.Gosco supplies forged and casted steel pulsation dampeners which are interchangeable with HYDRIL “K” Series dampeners, Emsco “PD” series dampeners and Bomco “KB” series dampeners. These units are dependable and reliable with API connections.
|
Model |
Volume(Gallon) |
Max. service pressure |
Standard Bottom Connection |
|
K-10 |
10 |
3000psi |
API 4” 3000psi Ring Joint |
|
K-10 |
10 |
5000psi |
API 4” 5000psi Ring Joint |
|
K-20 |
20 |
5000psi |
API 4” 5000psi Ring Joint |
|
PD-45 |
10 |
5000psi |
API 4” 5000psi Ring Joint |
|
PD-55 |
20 |
5000psi |
API 4” 5000psi Ring Joint |
|
KB-45 |
10 |
5000psi |
API 4” 5000psi Ring Joint |
|
KB-75 |
20 |
5000psi |
API 4” 5000psi Ring Joint |
We supply triplex mud pump parts for:
BOMCO: F-500, F-800, F-1000, F-1300, F-1600, F-1600HL, F-2200HL
Honghua: HHF500, HHF800, HHF1000, HHF1300, HHF1600, HHF1600HL, HHF2200HL
QZ: SL3NB-160, SL3NB-1300, QZ3NB-350, QZ3NB500, QZ3NB-800, QZ3NB-1000
TSC: WF500, WF800, WF1000, WF1300, WF1600, WF2000, WF2200
EMSCO: F-350, F-500, F-650, F-800, F-1000, F1300, F1600, FB-1300, FB-1600, FC1300, FC1600
LSNOW: 3NB-800, 3NB-1000, 3NB-1000C, 3NB-1300C
GARDNER DENVER: PZ-7, PZ-8, PZ-9, PZ-10, PZ-11
IDECO: T500, T800, T1000, T1300, T1600
Drillmec: 7T450, 7TS-500/600, 8T300M, 9T-1000, 12T1600, 14T2200
National: JWS 165, JWS 340/400, 7-P-50, 8-P-80, 9-P-100, 10-P-130, 12-P-160, 14-p-200, 14-P-220
OILWELL: A–350PT, A–560PT, A–600PT, A–850PT, A–1100P, A–1400PT, A–1700PT
Weatherford: MP-5, MP-8, MP-10, MP-13, MP-16
Russian: UNBT 950, UNB 600, 8T650, UNBT 1180L, NBT 600, NBT 300, 3PN800-2200
SPM: 5ZB2500, 5ZB2800, TWS2250, TWS2500, TWS600S
Halliburton: HT-400, HT-446
Others: JWS165, JWS340, JWS400, 7-P-50, 8-P-80, 9-P-100, 10-P-130, 12-P-160, PXL, PAH, TEE-5, and OPI-700 etc.
Triplex Mud Pump Fluid End Expendables
