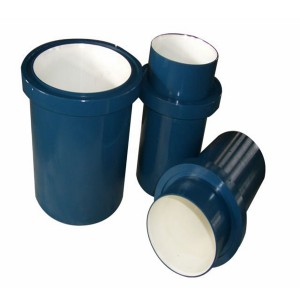

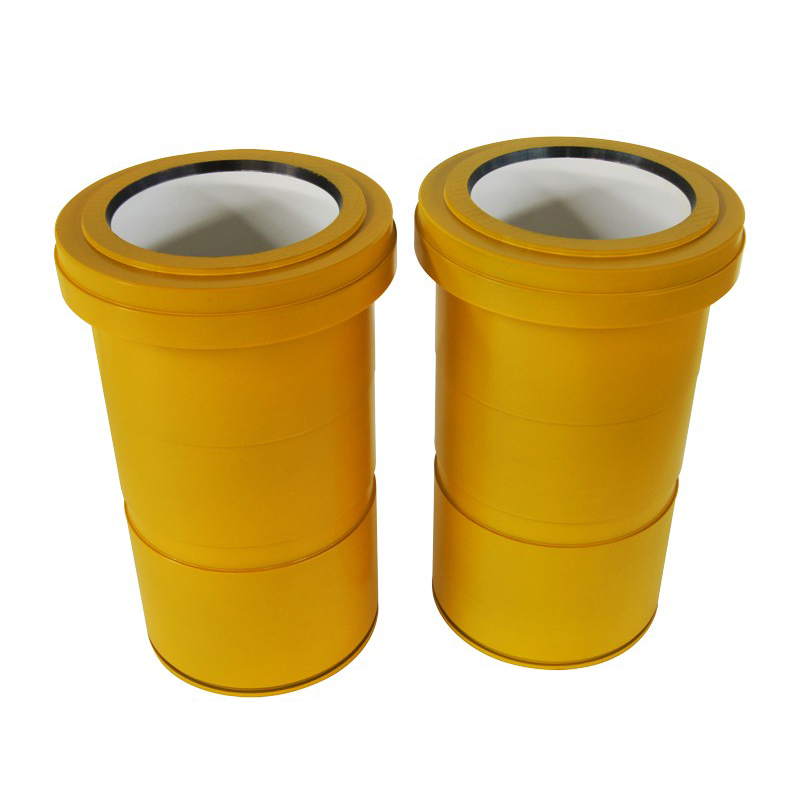

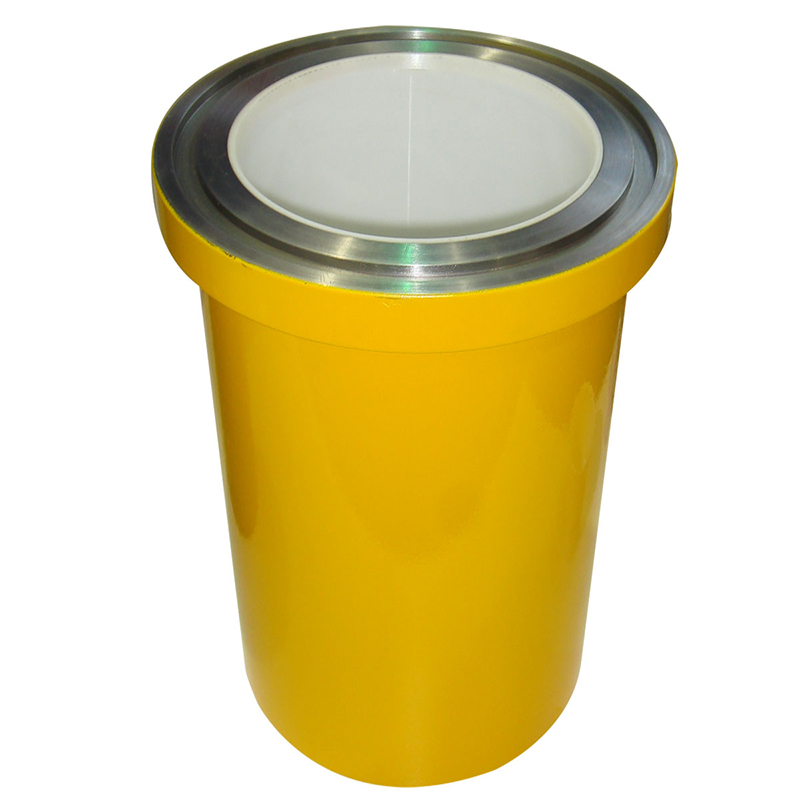

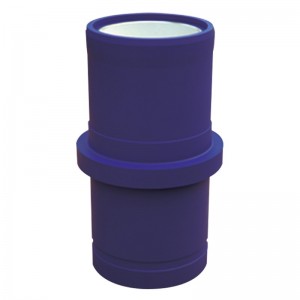

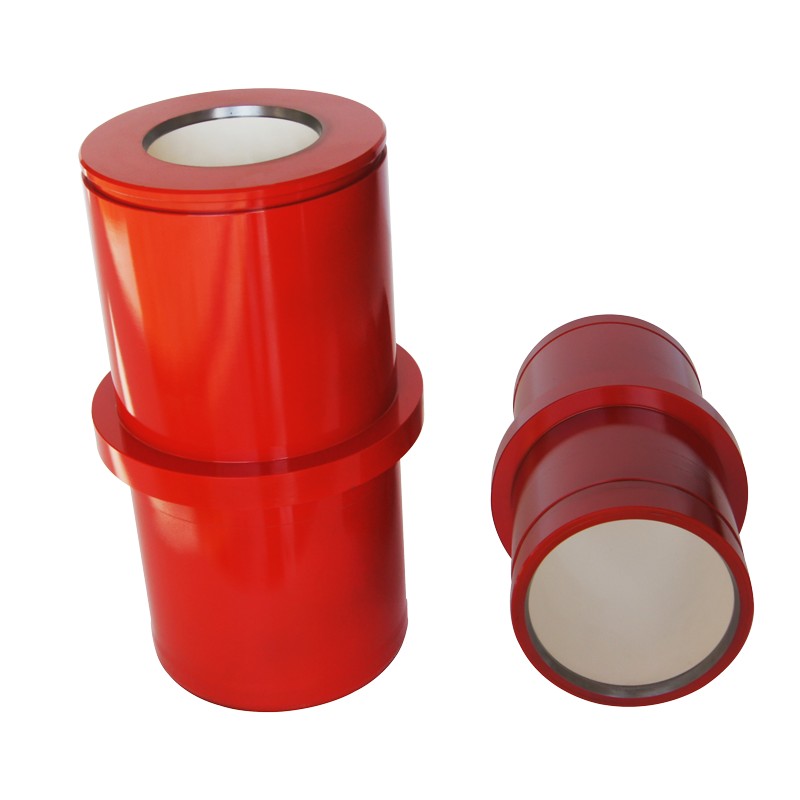

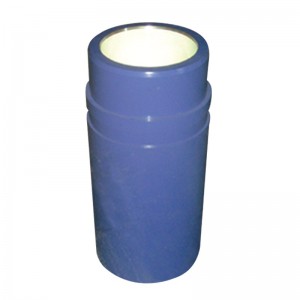

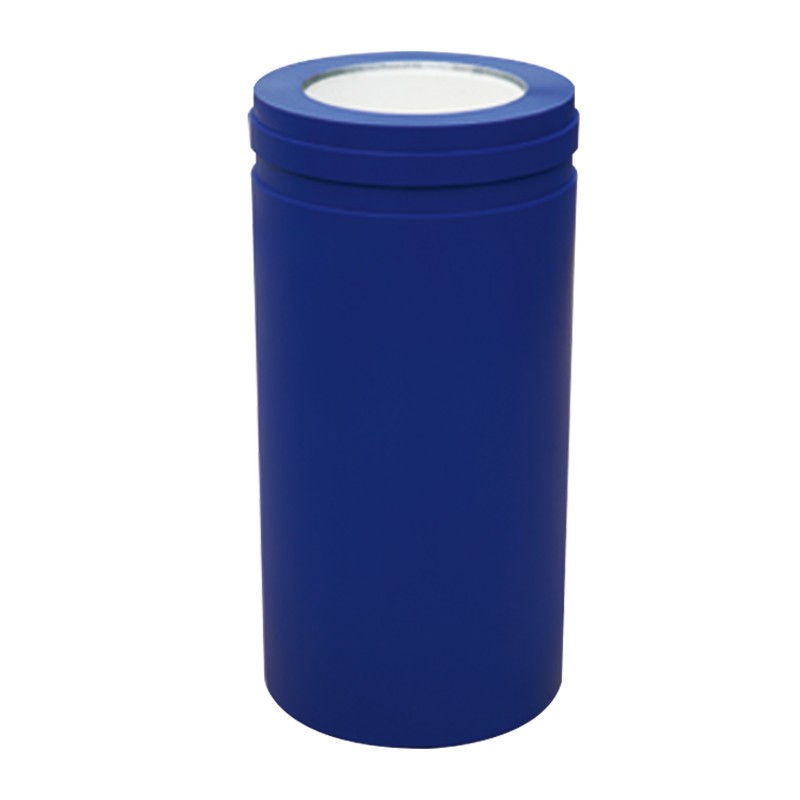

Zirconia Ceramic Liner

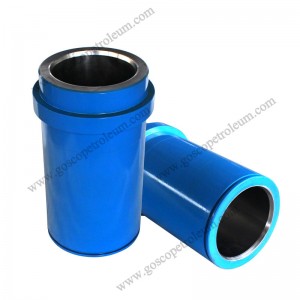

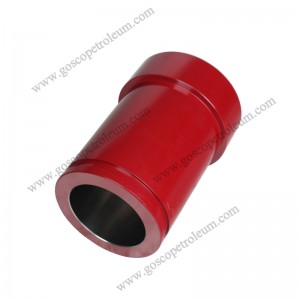

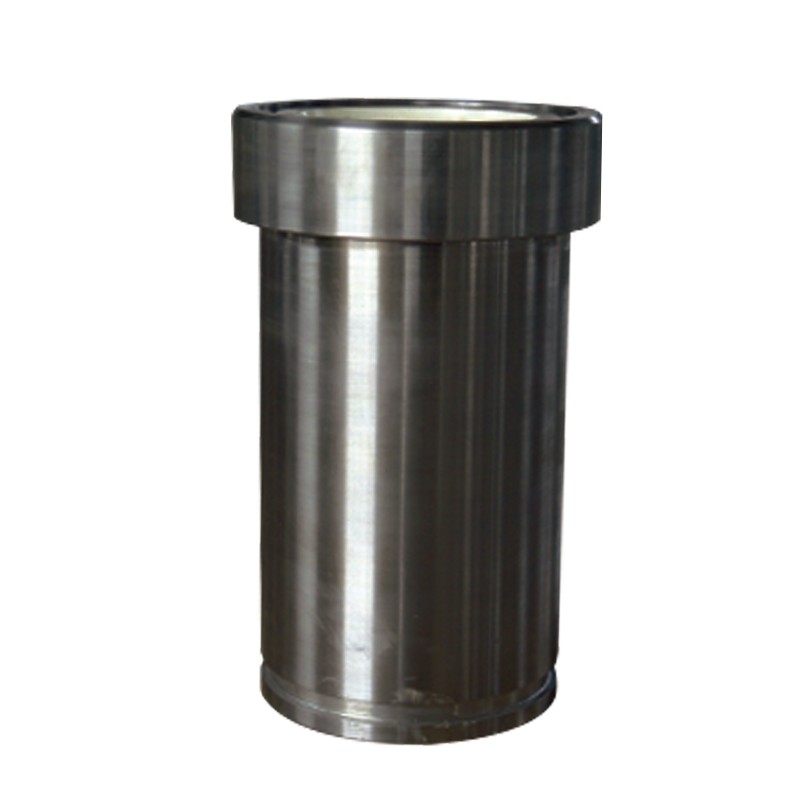

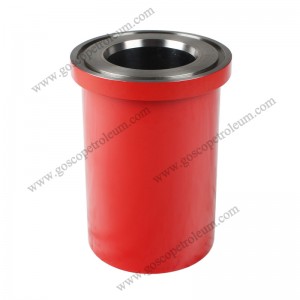

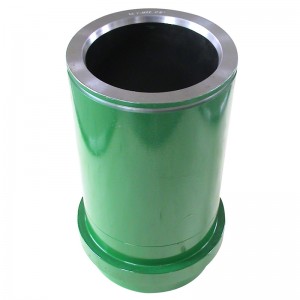

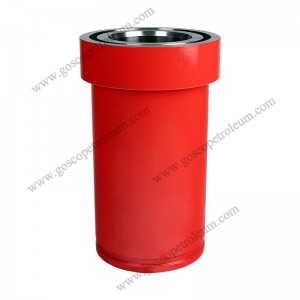

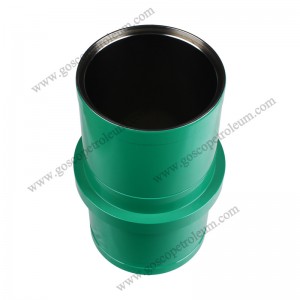

GOSCO mud pump Liners are designed to be interchangeable with OEM triplex pumps. All our liners are made with a high strength forged steel shell machined to fit triplex pumps and fitted with high pressure lip sleeve. The liner is precision machined to exact tolerances to keep the liner concentric. The sleeve is manufactured to the bore tolerances specified by API to provide longer life by reducing gaps between the liner bore and piston. After the shell and sleeve are assembled, the I.D. of the liner is honed to a perfect circle and polished to a mirror finish.

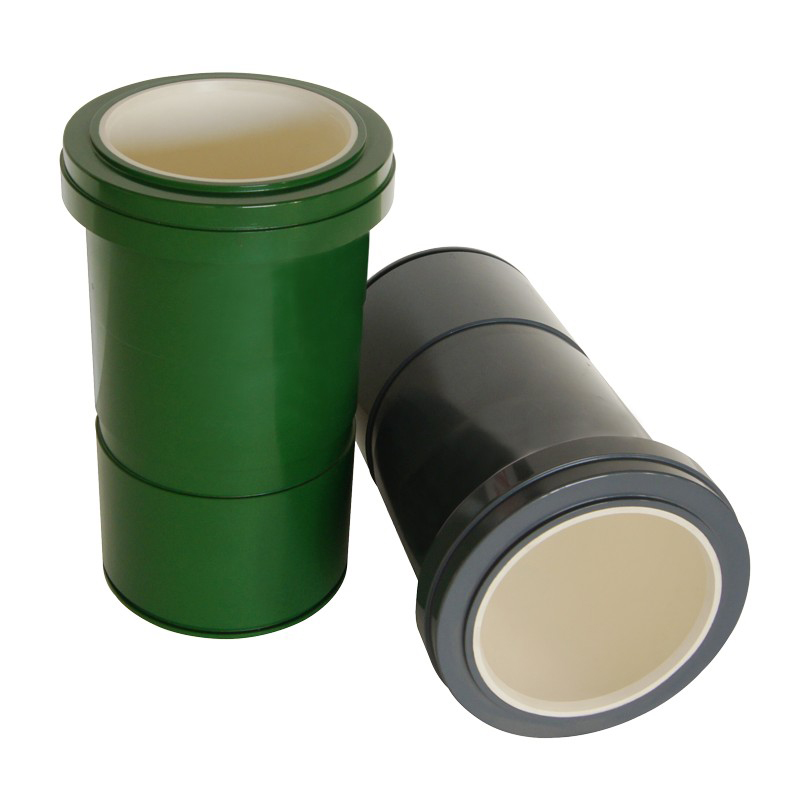

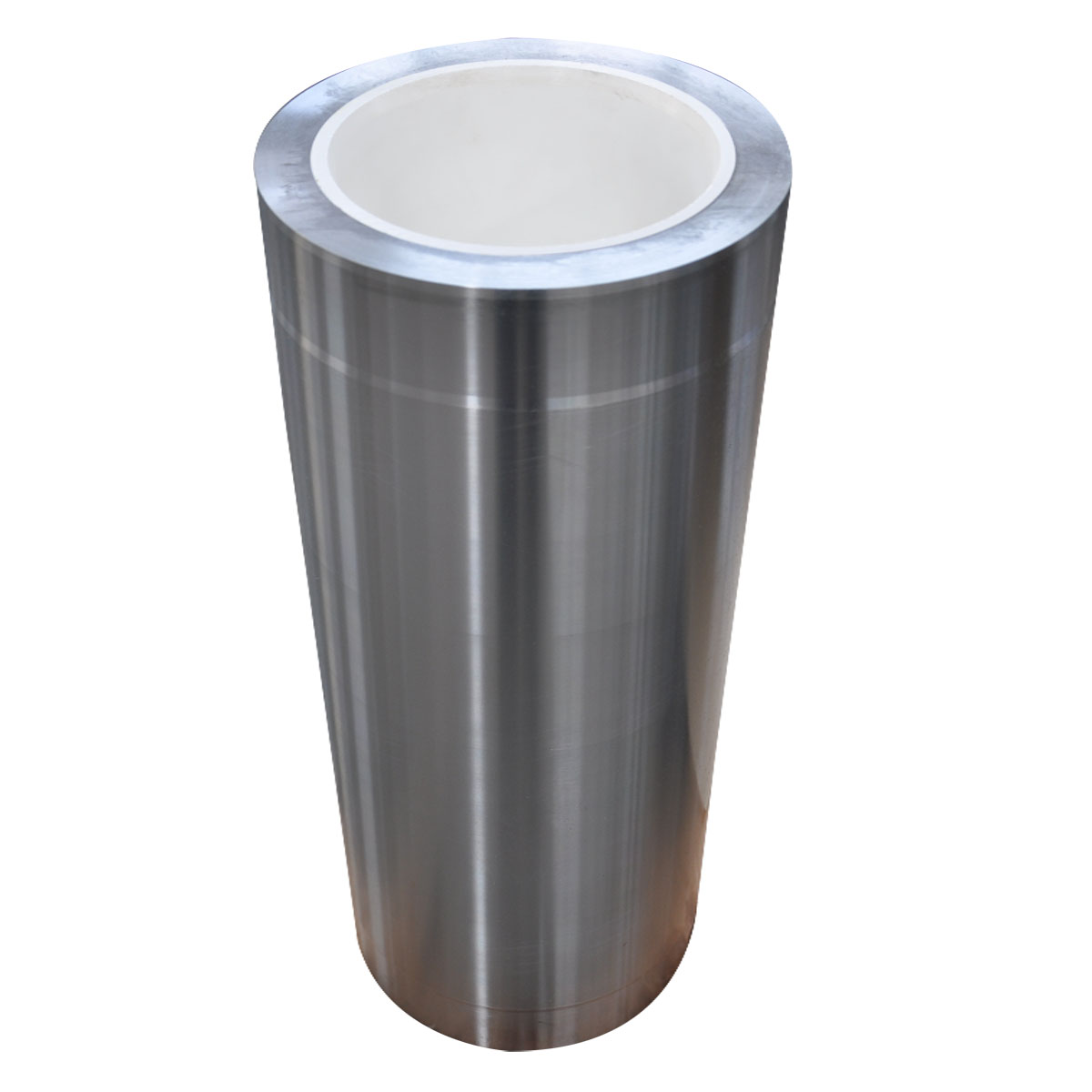

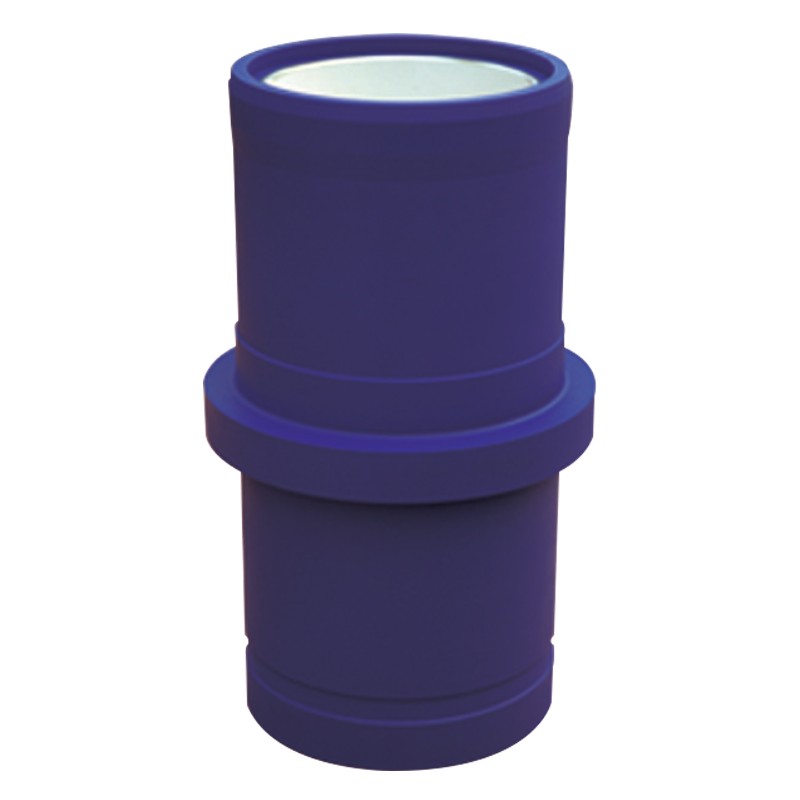

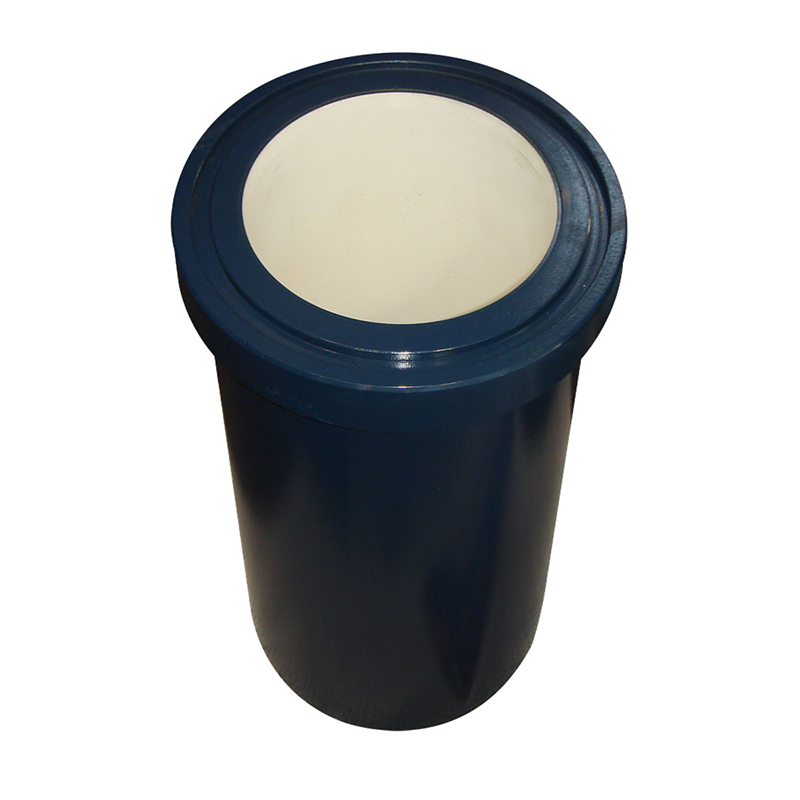

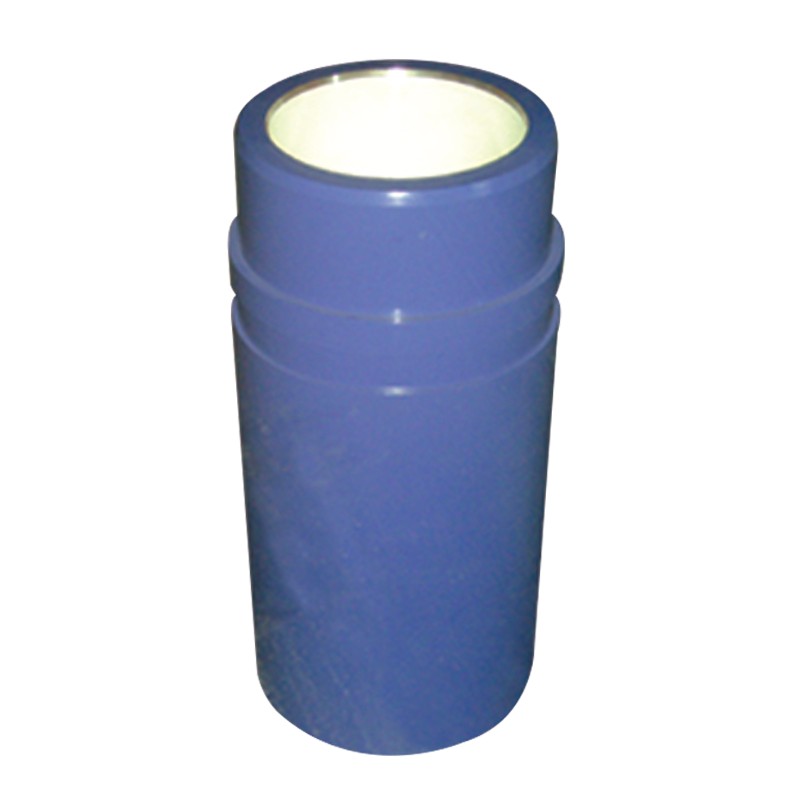

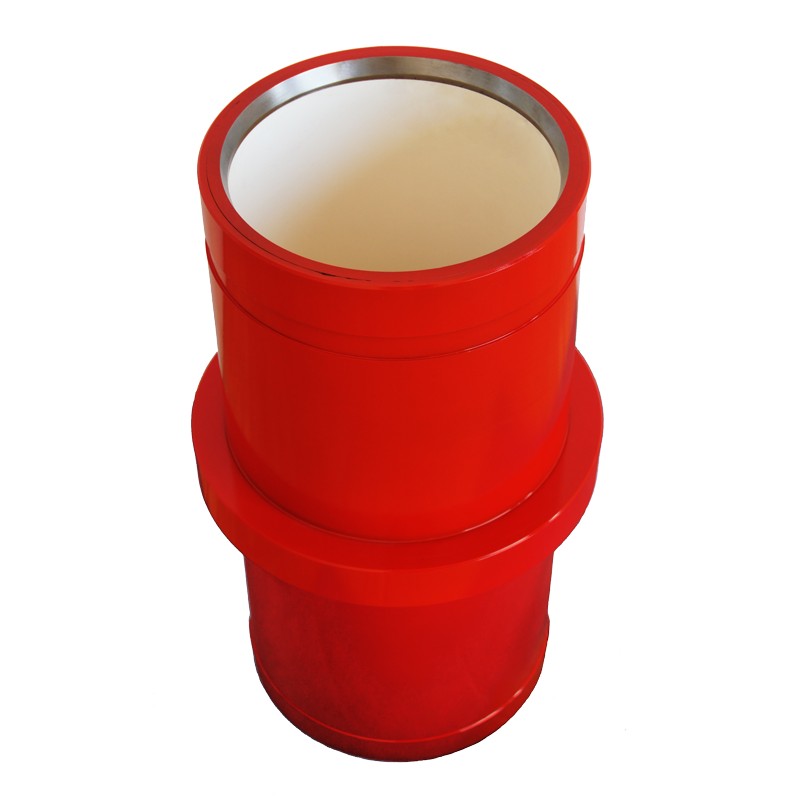

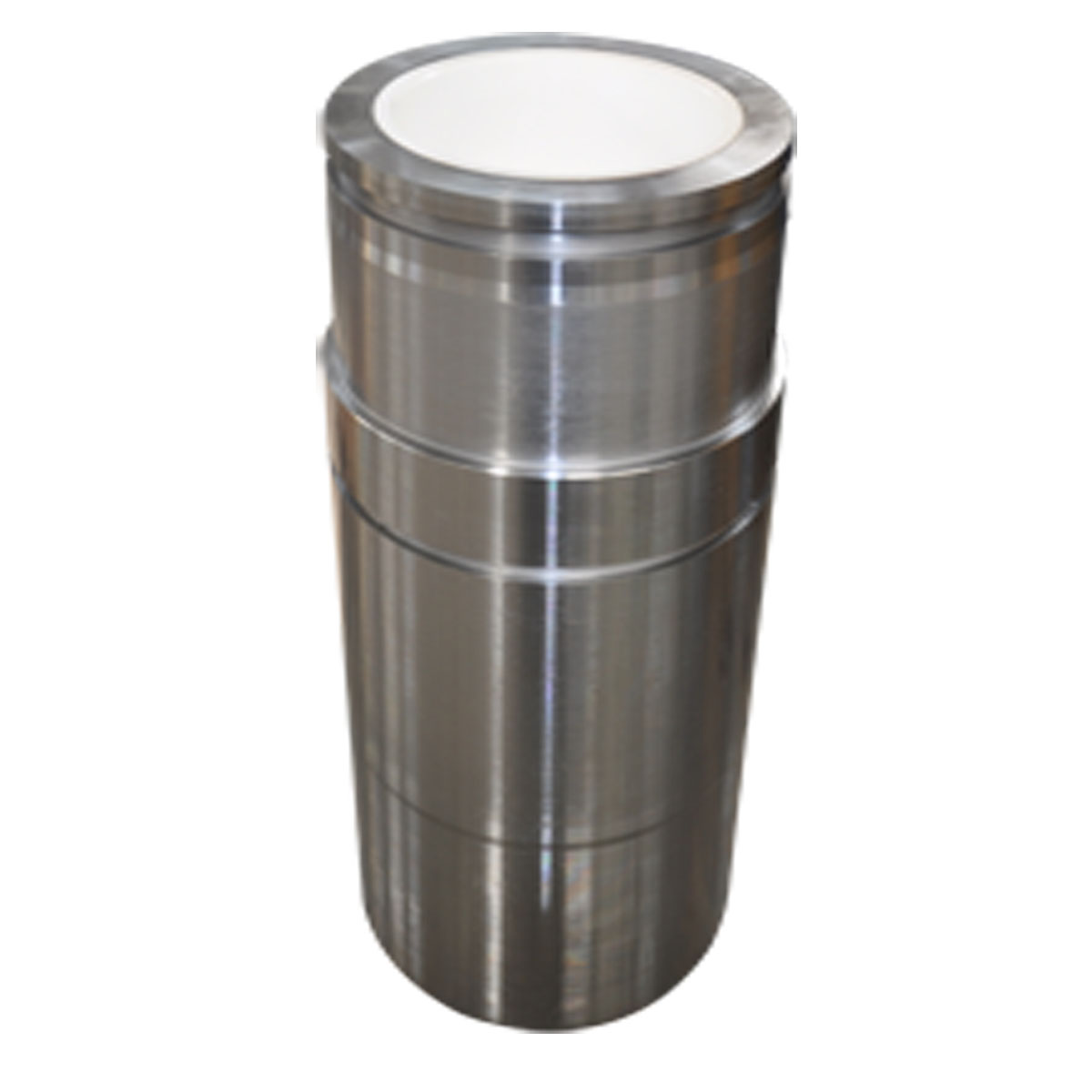

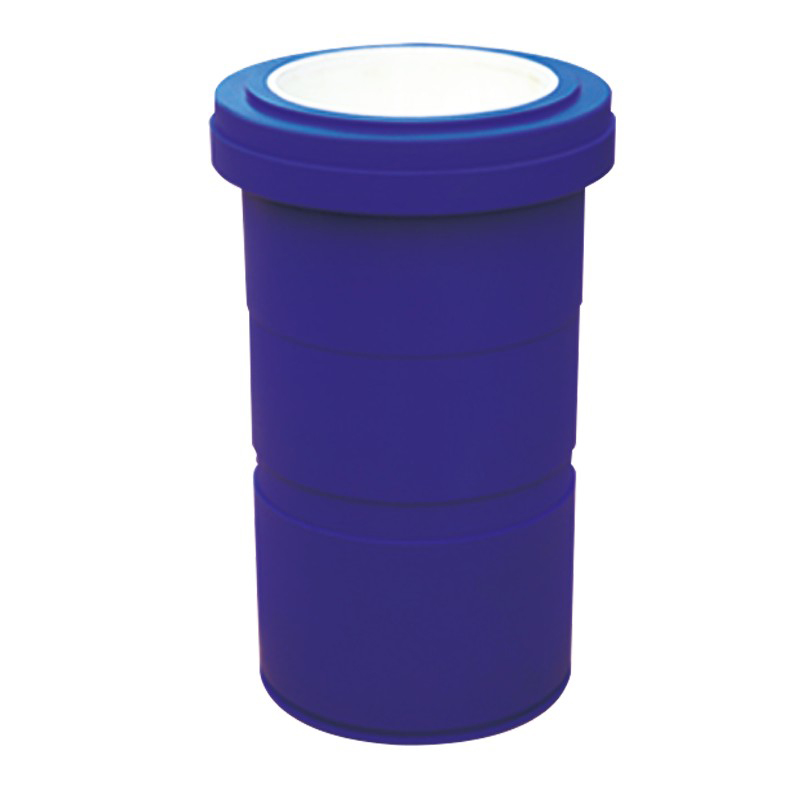

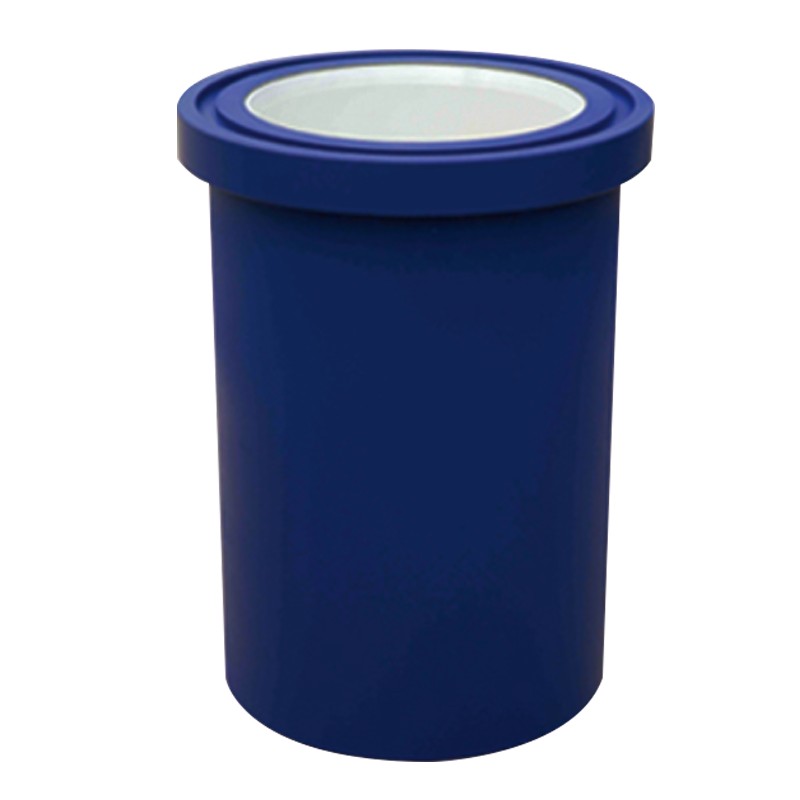

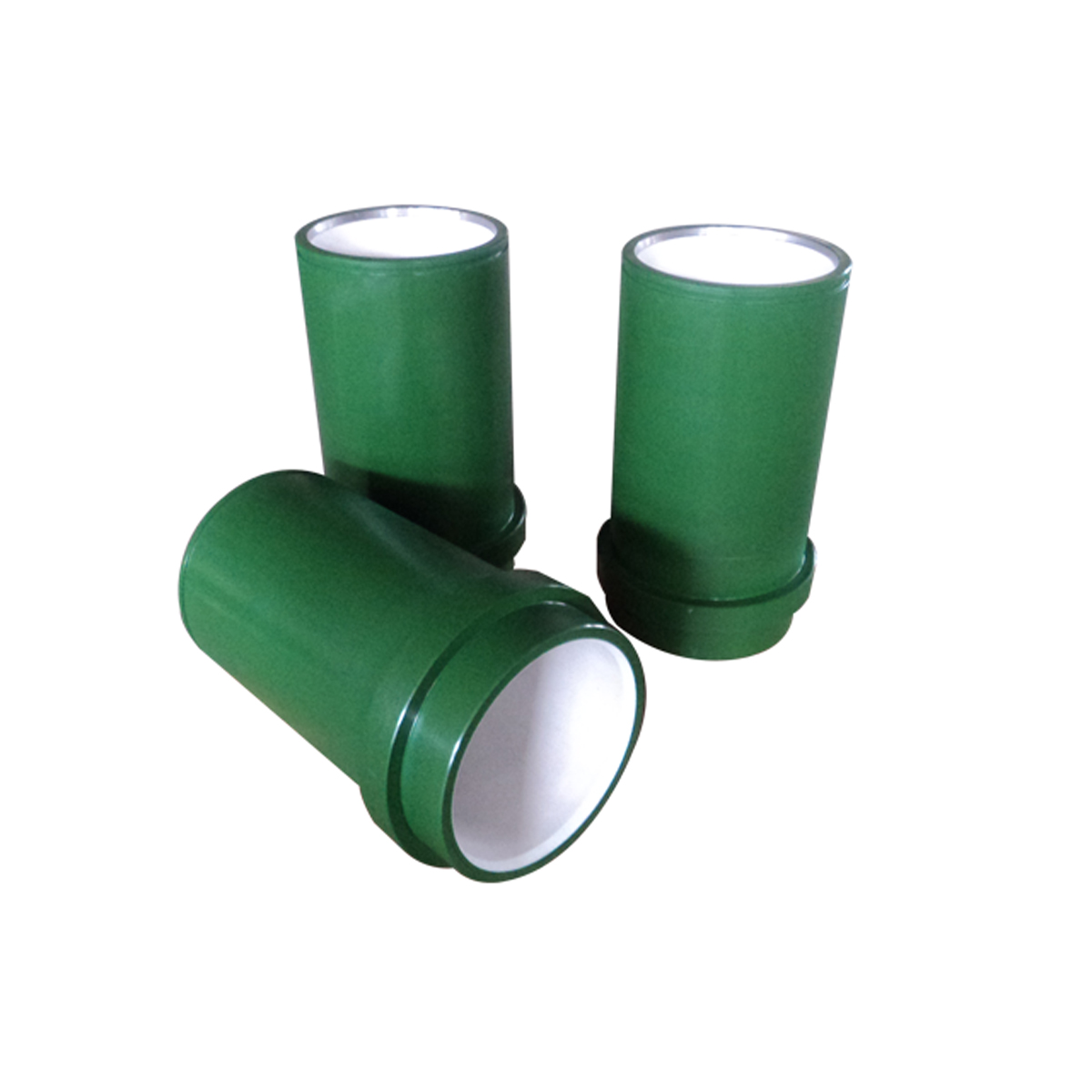

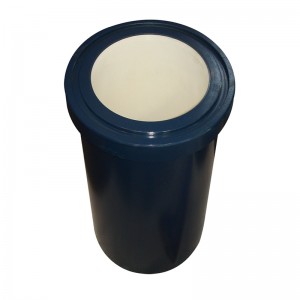

ZIRCONIA CERAMIC LINER：
GOSCO Ceramic Liners offer longer run times, lower operating costs and reduced risk exposure when compared to operating with chrome iron liners.
The ceramic sleeve material is manufactured from alumina oxide, known for its wear resistance, and has proven run times in all types of operating conditions. The outer hull material for large bore liners is manufactured from alloy steel to increase yield strength and aid in fatigue resistance. OM ceramic liners are corrosion resistant and have a smoother surface finish for reduced friction and heat.
FEATHERS/BENIFITS：
“HP” Design with shoulder on hull to prevent sleeve slippage.
ID tolerances is +.010”/-.000”
Surface finish 4-8 RMS
Expected run life exceeding 10,000 hours
Hardness: HV 0.3 kg/mm – 1100/1200 (92-94 Rc)
- (Chrome sleeved liners are 60-64 Rc)
Ceramic liners do not create ID ridges which are common in high chrome liners.
-ID ridges are a cause of piston failures.
-Ceramic liners improve piston run life.
Ceramic liners are pressure rated to pump performance by piston size.
Liners are available in sizes 4- 1/2” to 8” .
Liners are available for popular pumps.
We supply triplex mud pump parts for:
BOMCO: F-500, F-800, F-1000, F-1300, F-1600, F-1600HL, F-2200HL
Honghua: HHF500, HHF800, HHF1000, HHF1300, HHF1600, HHF1600HL, HHF2200HL
QZ: SL3NB-160, SL3NB-1300, QZ3NB-350, QZ3NB500, QZ3NB-800, QZ3NB-1000
TSC: WF500, WF800, WF1000, WF1300, WF1600, WF2000, WF2200
EMSCO: F-350, F-500, F-650, F-800, F-1000, F1300, F1600, FB-1300, FB-1600, FC1300, FC1600
LSNOW: 3NB-800, 3NB-1000, 3NB-1000C, 3NB-1300C
GARDNER DENVER: PZ-7, PZ-8, PZ-9, PZ-10, PZ-11
IDECO: T500, T800, T1000, T1300, T1600
Drillmec: 7T450, 7TS-500/600, 8T300M, 9T-1000, 12T1600, 14T2200
National: JWS 165, JWS 340/400, 7-P-50, 8-P-80, 9-P-100, 10-P-130, 12-P-160, 14-p-200, 14-P-220
OILWELL: A–350PT, A–560PT, A–600PT, A–850PT, A–1100PT, A–1400PT, A–1700PT
Weatherford: MP-5, MP-8, MP-10, MP-13, MP-16
Russian: UNBT 950, UNB 600, 8T650, UNBT 1180L, NBT 600, NBT 300, 3PN800-2200
SPM: 5ZB2500, 5ZB2800, TWS2250, TWS2500, TWS600S
Halliburton: HT-400, HT-446
Others:PXL, PAH, TEE-5, and OPI-700 etc.
