Fluid End Modules

Short Description:

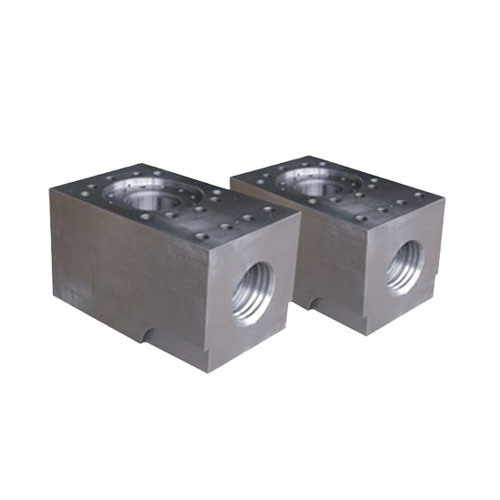

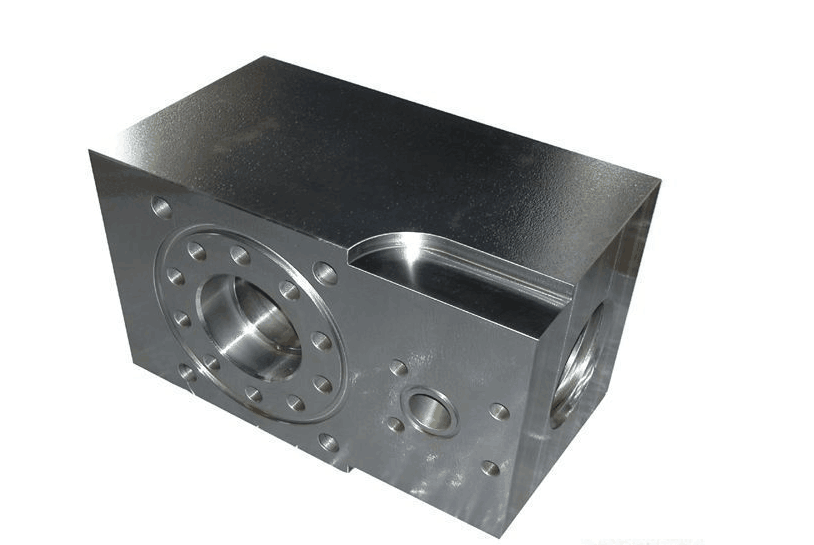

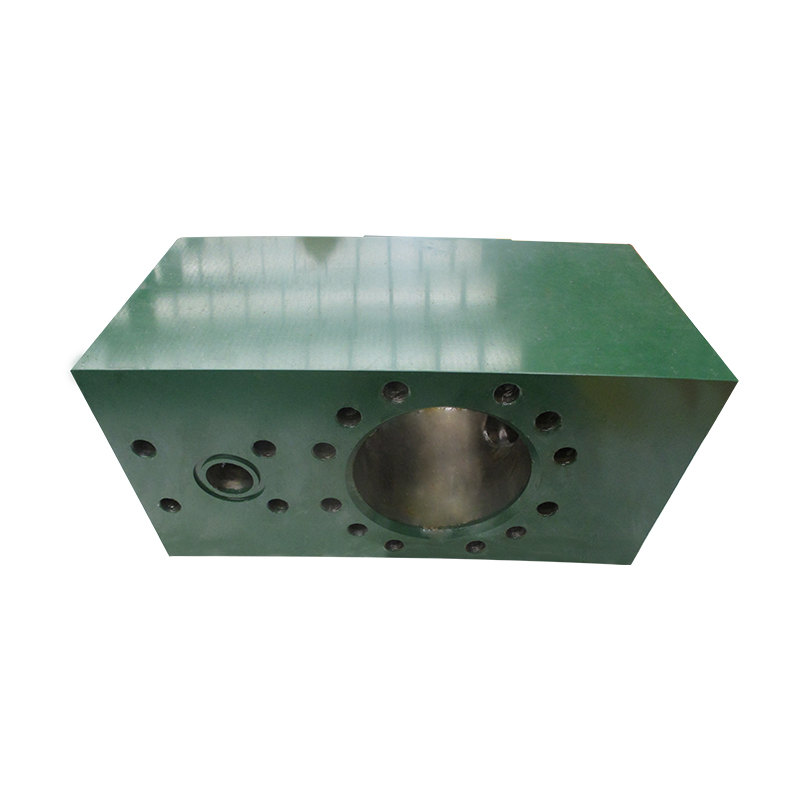

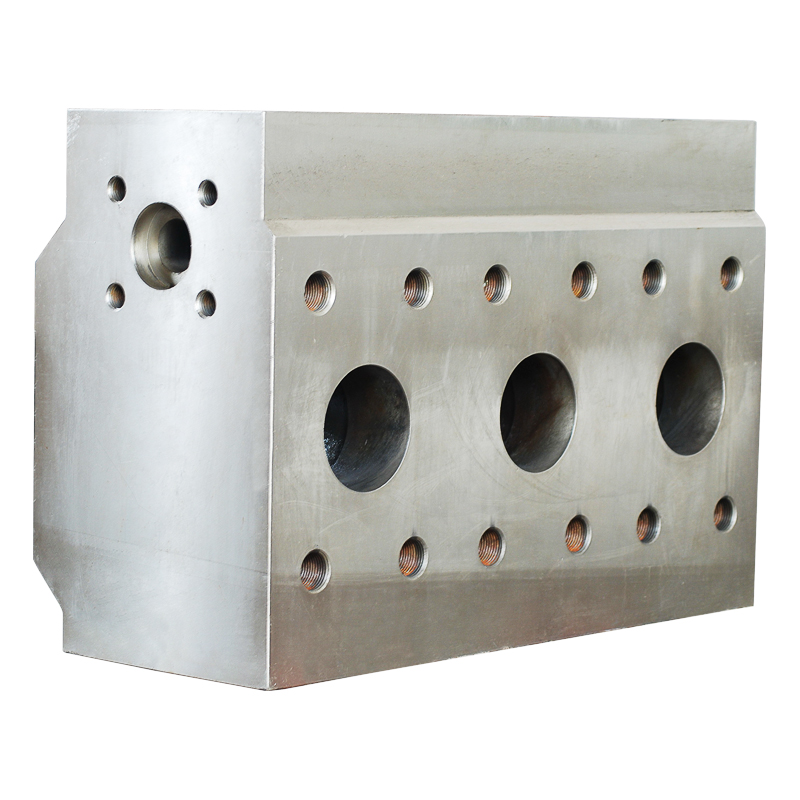

Our high-strength, triple reduction, forged steel triplex fluid end modules are made from the highest alloy steel. Heat treated for long working life, they are machined to perfection and packaged for delivery with anti-corrosion protection. The precision-made jewelry-like exterior finish reflects out superior quality.

FEATHERS：
Completely interchangeable with OEM
Premium-forged alloy steel.
Made on CNC boring mills.
Strict computer controlled heat treat procedures.
Rigid inspection.
Rated for all drilling operations up to 7500psi.

The hydraulic cylinder of the mud pump is made of corrosion-resistant and high-strength high-quality alloy steel heavy forgings. After quenching and tempering, it has the characteristics of tension and wear resistance. At the same time, the XH768 CNC machining equipment and process integrating drilling, milling and tapping, which are leading in China, are used in the processing of the inner cavity, so that the valve box can withstand a working pressure of 31MPa, improve the processing accuracy and safety factor of the valve box, and make the valve box have the advantages of high pressure resistance, corrosion resistance, long service life, etc, It is more suitable for drilling technology requirements such as high pump pressure and large displacement in the oilfield

Send email to us

Product Detail

We supply triplex mud pump parts for:
BOMCO: F-500, F-800, F-1000, F-1300, F-1600, F-1600HL, F-2200HL
Honghua: HHF500, HHF800, HHF1000, HHF1300, HHF1600, HHF1600HL, HHF2200HL
QZ: SL3NB-160, SL3NB-1300, QZ3NB-350, QZ3NB500, QZ3NB-800, QZ3NB-1000
TSC: WF500, WF800, WF1000, WF1300, WF1600, WF2000, WF2200
EMSCO: F-350, F-500, F-650, F-800, F-1000, F1300, F1600, FB-1300, FB-1600, FC1300, FC1600
LSNOW: 3NB-800, 3NB-1000, 3NB-1000C, 3NB-1300C
GARDNER DENVER: PZ-7, PZ-8, PZ-9, PZ-10, PZ-11
IDECO: T500, T800, T1000, T1300, T1600
Drillmec: 7T450, 7TS-500/600, 8T300M, 9T-1000, 12T1600, 14T2200
National: JWS 165, JWS 340/400, 7-P-50, 8-P-80, 9-P-100, 10-P-130, 12-P-160, 14-p-200, 14-P-220
OILWELL: A–350PT, A–560PT, A–600PT, A–850PT, A–1100P, A–1400PT, A–1700PT
Weatherford: MP-5, MP-8, MP-10, MP-13, MP-16
Russian: UNBT 950, UNB 600, 8T650, UNBT 1180L, NBT 600, NBT 300, 3PN800-2200
SPM: 5ZB2500, 5ZB2800, TWS2250, TWS2500, TWS600S
Halliburton: HT-400, HT-446
Others: JWS165, JWS340, JWS400, 7-P-50, 8-P-80, 9-P-100, 10-P-130, 12-P-160, PXL, PAH, TEE-5, and OPI-700 etc.
Triplex Mud Pump Fluid End Expendables
